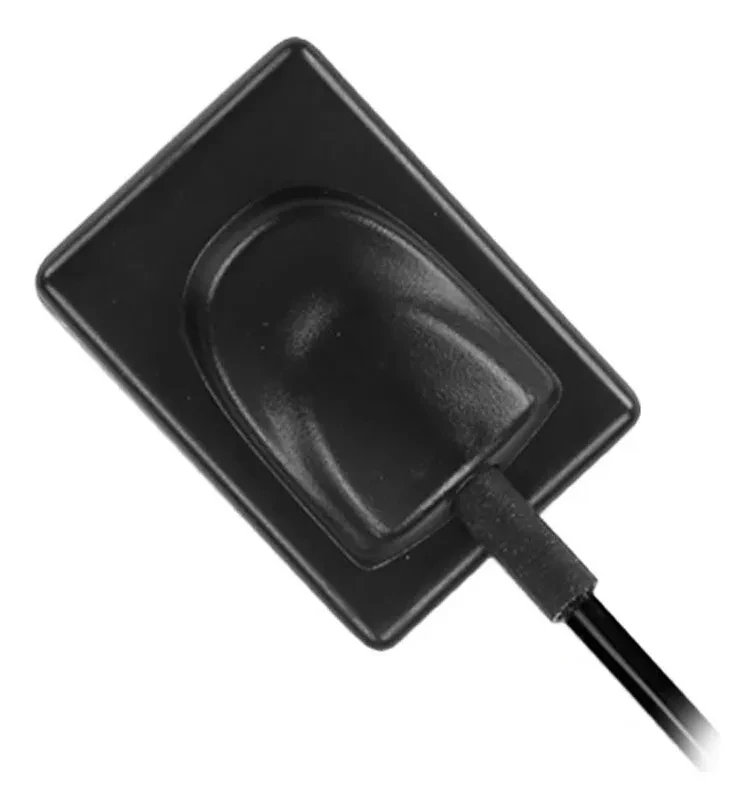

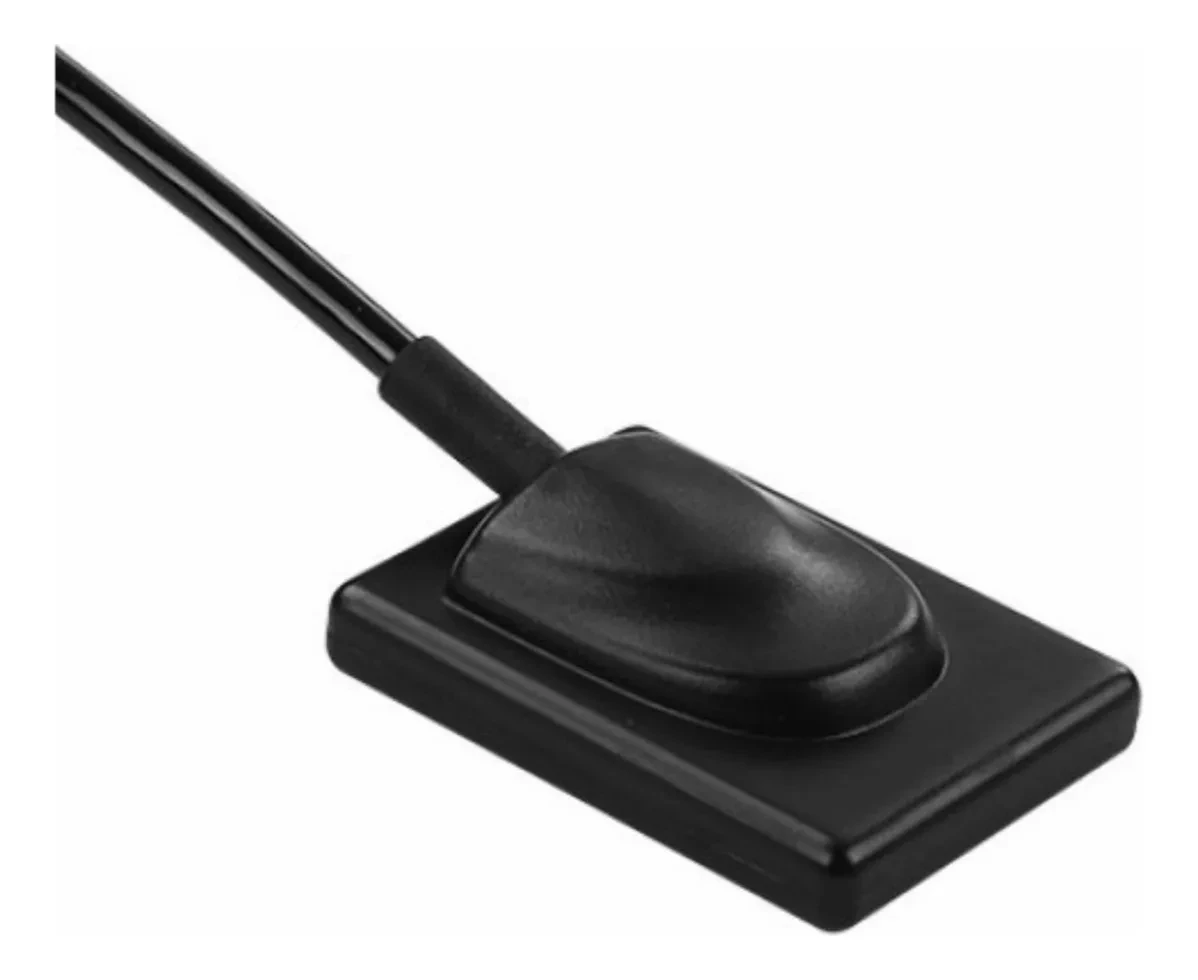

DS530 RVG

Intraoral imaging system sensor

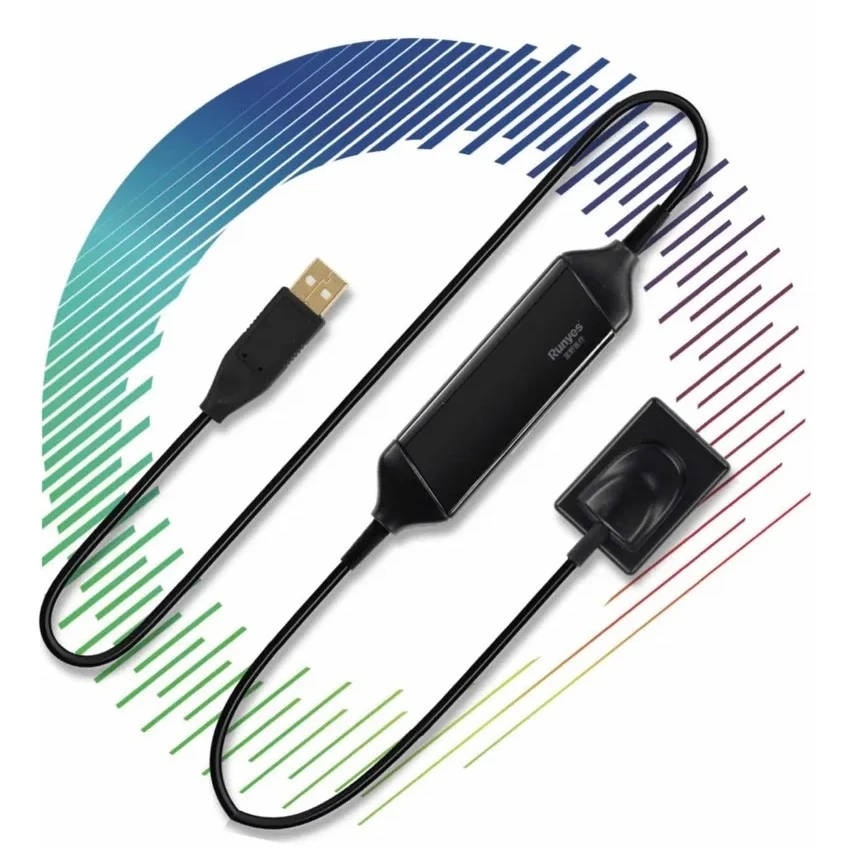

SENSOR WITH REPLACEABLE CABLE

1. Adopt a strong, tear-resistant PU asa  sheath
2. Easy to clean and strong bending resistance
3. Superfine conductive copper wire
4. Millions of bending testsCOMPATIBILITY

Applicable to almost all X-ray machines on the market

AVAILABLE FOR LIQUID DISINFECTANT IMMERSION DISINFECTION
1. The sensor is tightly stitched
2. Repeated verification by engineers
3. Reach IPX7 waterproof level
4. Can be disinfected with immersion
5. Avoid secondary cross-infection

TECHNICAL PARAMETERS

Model: DS530

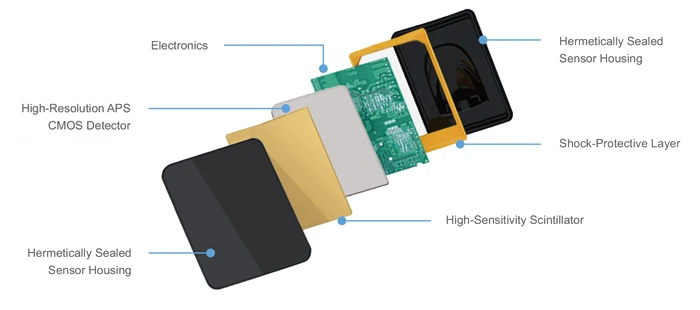

Chip Type: APS CMOS
Pixel Size: 18.5μm
Dimension: 39x28.5x6mm
Active Area: 30x22.5mm
Active Pixel Array: 1600x1200mm
Image Pixel: 1604x1204mm
Voltage (through USB connection): 5.0 V±0.5V
Electricity Current (through USB connection): ≤500mA
Power: ≤1W
Digitization: 12/14/16 bit
Imaging Time: 3-4s
Resolution: 27 lp/mm
Signal Output: USB

Country: China
