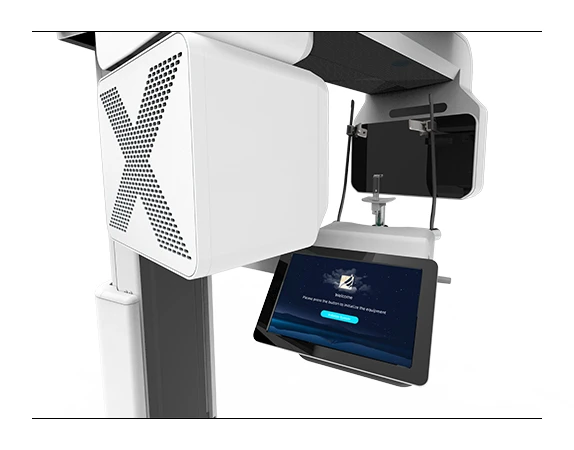

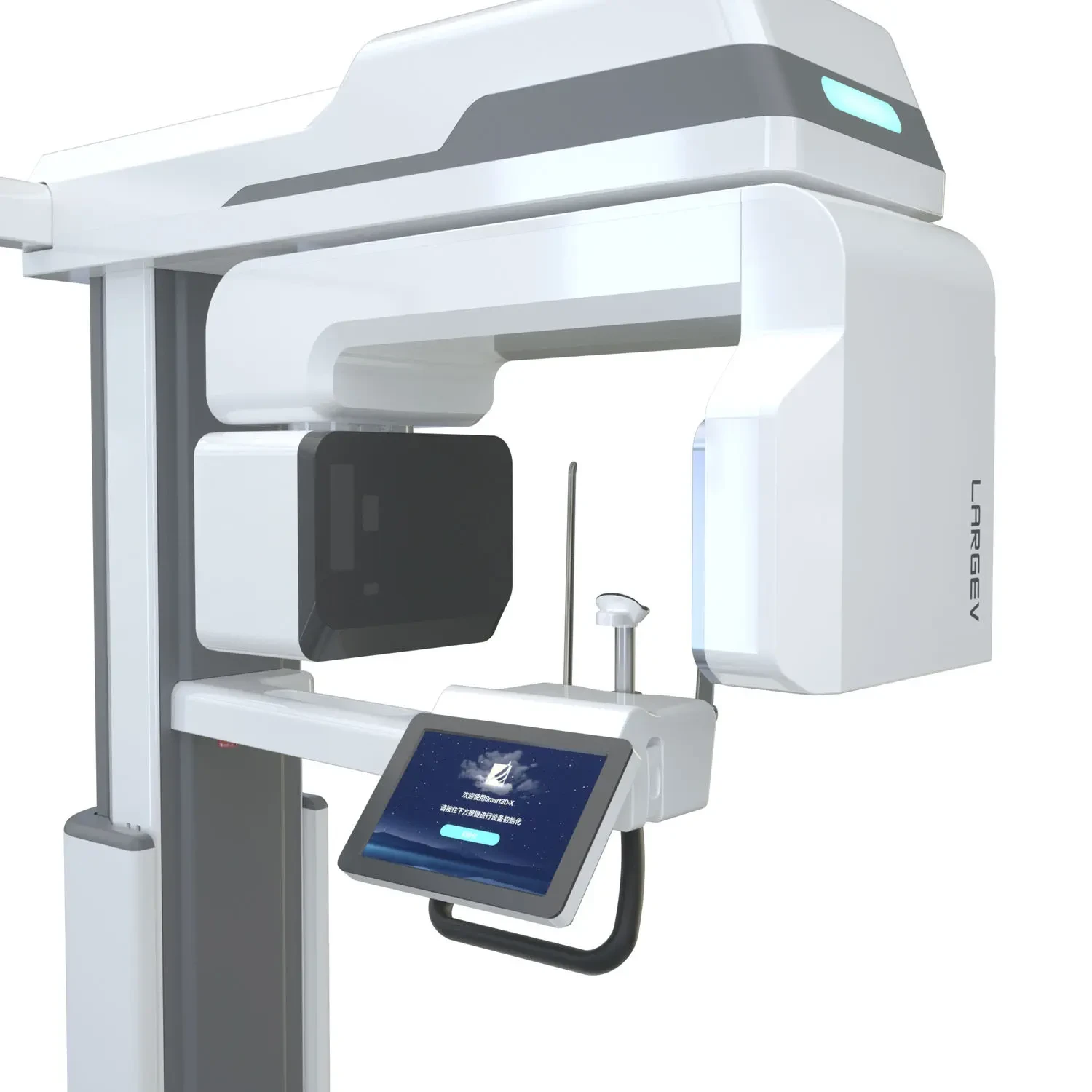

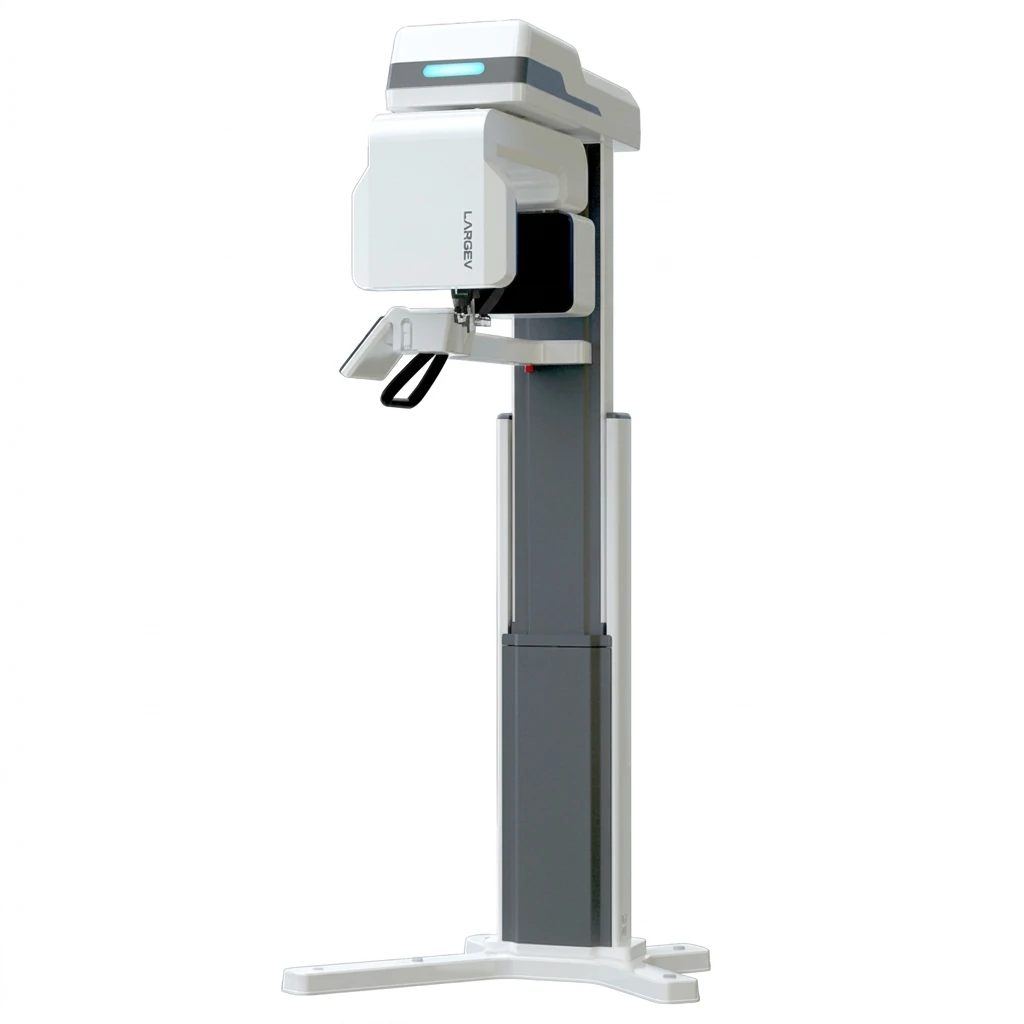

LargeV Smart3D-X CBCT offers high-quality imaging, low-dose radiation, high reliability, and an excellent end-user experience. The core team at LargeV hails from Tsinghua University, bringing extensive expertise in CT imaging, dose control, and radiation protection. The Smart3D system integrates Panoramic and CBCT imaging into a single platform.

Key Features:

• 2-in-1 Imaging System – Supports CBCT and Panoramic (PAN) imaging.
• QuartZ 4 Scan Platform – Enables flexible scan modes for optimized image acquisition.
• Multiple Focus Layers – Enhances panoramic imaging to fit the patient’s dental arch.
• Multiple FOV Options – Adjustable field of view selections for diagnostic flexibility.
• Three Scan Modes – Choose from Fast Scan, Standard-Definition, and High-Definition.
• T-MAR Metal Artifact Reduction – Reduces distortions from metal restorations.
• Panoramic Image Reconstruction – Converts 3D image data into panoramic views.
• 360° Full-Angle CT Scanning – Captures 800 projection frames for enhanced accuracy.
• Six-Point Positioning Laser System – Ensures precise patient alignment for accurate scans.
• X-Type Base Design – Wheelchair-friendly for improved patient accessibility.
• User-Friendly Touch Screen – 10” LED interface for intuitive operation.
• AI-Enhanced Imaging – Features AI-Low Dose radiation control, AI-Nerve canal marking, and AI-PAN for panoramic reconstruction.
• SmartVPro Software – Supports implant simulation, TMJ diagnosis, cephalometric analysis, airway measurement, and bone density assessment.

CHARACTERISTICS

Type of System

panoramic X-ray system and dental CBCT scanner

Technology

digital

FOV (cm)

8x8 cm, 10x10 cm, 16x10 cm, 10x8 cm

Tube voltage (kV)

60 kV, 70 kV, 90 kV, 85 kV, 80 kV, 100 kV

Focal spot size (mm)

0,5 mm, 0.4 mm, 0.3 mm

Voxel size (μm3)

25 µm, 50 µm

Highlights:

- 2-in-1 (CT, Pano)

-Large FOV (Field of View)

-AI Artifact Reduction

-Official UAE Installation & Support

-Selectable FOV: 5x5cm (Endo), 8x8cm (Single Arch), 12x10cm (Full Dentition), up to 15x15cm

-Ultra-Low Dose Pediatric Mod

-Full DICOM Compatibility - Works with all major 3D Implant Planning Software

Country of Origin: China
